Muldenkipper mit perdur

Wear-resistant cut-to-length sheets and strong partnerships have a name: perdur®

perdur® is our product brand when it comes to innovative, cut-to-length sheet coupled with a comprehensive service package for our customers. Learn more!

perdur® stands for performance

Muldenkipper

perdur® 400 and perdur® 450 offer you versatile cut-to-length sheets that combine high wear resistance with excellent forming properties, offering guaranteed toughness and all the advantages of thyssenkrupp steel in a single product. Our perdur® cut-to-length sheets will initially be available in a thickness range from 4.00 mm to 8.00 mm. Due to their very tight thickness tolerance, they offer both the advantage of both weight reduction, as well as better cold forming.

perdur® instead of heavy plates: a lasting change

A unique property that is second to none: in comparison to classic heavy plates of the same dimensions, perdur® possesses better resistance to brittle fracture and is thus ideally suited for high-quality processing in your customized applications.

Available sizes

Thickness [mm] Maximum width [mm]
4.0 – 8.0 1,500

Mechanical properties, guaranteed values

Brinell hardness [HBW] Impact energy KV min. [J] at -20°C
370 – 430 27
Testing in direction of rolling, delivery condition: Quenched (Q)

Mechanical properties, typical values

Impact energy KV typ. [J] at -40°C Yield strength Rp0.2 typ. [MPa] Tensile strength Rm typ. [MPa] Elongation A typ. [%]
45 1,100 1,300 11
Testing in direction of rolling, delivery condition: Quenched (Q)

Available sizes

Thickness [mm] Maximum width [mm]
4.0 < t < 6.0 1,500
6.0 – 8.0 1,600

Mechanical properties, guaranteed values

Brinell hardness [HBW] Impact energy KV min. [J] at -20°C
420 – 480 27
Testing in direction of rolling, delivery condition: Quenched (Q)

Mechanical properties, typical values

Impact energy KV typ. [J] at -40°C Yield strength Rp0.2 typ. [MPa] Tensile strength Rm typ. [MPa] Elongation A typ. [%]
40 1,200 1,450 10
Testing in direction of rolling, delivery condition: Quenched (Q)

perdur® stands for wear-resistant partnerships that stand the test of time

Our perdur® cut-to-length sheets underline our goal to provide comprehensive customer service from materials consulting and innovation to application and process optimization.

When it comes areas of application that are subject to excessive and continuous stress, perdur® is the product that you and your customers to rely on.

perdur® for a longer service life, larger loads and less CO2

Muldenkipper

Our perdur® brand guarantees the combination of hardness and toughness, and thus allows for the construction of lighter, more durable and sustainable lightweight dumpers and roll-off/skip loaders.

Are you looking to expand your product range? As a materials partner, we support you with our application experience in construction and material selection. Contact us.

Perfect as a duo: find out more about the economic advantages of perform®. Our branded steel for bend-resistant and torsion-resistant chassis frames allows you to minimize the risk of crack initiation in vehicle use.

A perdur® upgrade for added cost-effectiveness and environmental protection at your customers

Müllfahrzeug

Garbage truck tail lifts are especially subject to wear. They often use unalloyed structural steel, which makes them an avoidable cost factor based on their full service life.

By using perdur® cut-to-length sheets, you can meet the requirements of today’s customers: vehicles that are both economical and ecologically sustainable. A new level of innovation, on which we would like to support you as your ideal materials partner equipped with the necessary application know-how.

Benefit from our experience

As an experienced materials technology partner, thyssenkrupp Steel has always been synonymous with innovative, custom solutions – especially where cut-to-length sheet products are concerned. No matter how diverse, customer requirements are rapidly implemented down to a T. Our long-standing customer relationships play an important role in this regard.

Trust is our success

We maintain close contact with our customers and can look back on years of experience and partnerships across many industries. Our Industry sales and technical customer support teams are structured according to industries for good reason. This allows us to ensure that the necessary expertise and specialist knowledge are bundled in a targeted manner and that you always have a reliable point of contact. An intensive exchange is a prerequisite for recognizing your needs at an early stage and being able to optimize processes together.

Shaping a sustainable future together

In the case of wear-resistant cut-to-length sheets in particular, there will be demand in the future for specialized products that weigh less, and possess excellent processing properties and high wear resistance. We support our customers with our know-how and team of experts, and provide a partner to develop and manufacture high-quality and tailor-made wear-resistant steel. That means that we involve the customer and various departments at our company right from the start: Technical Customer Support with Sales, and Technology and Innovation with Applications Technology. That is how we are able to offer you the best service throughout the life cycle of your products. And in the future also “green” wear-resistant cut-to-length sheets on demand.

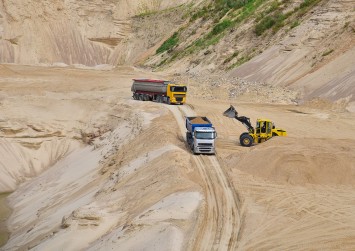

Dumper

Dumper

Less CO2, larger loads and longer service life

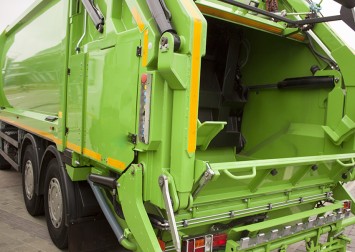

Garbage trucks

Garbage trucks

perdur® for more cost-effectiveness and sustainability

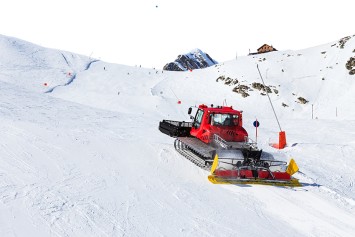

Snowcats

Snowcats

Brand quality for high stability and optimal power transmission
