scalur®+Z: hot-dip galvanized flat product with very close thickness tolerances

For maximum cost-efficiency in part manufacture

scalur®+Z is a hot-dip galvanized flat product from thyssenkrupp with very close thickness tolerances. The thickness tolerances of down to +/- 0.06 mm over strip length and width are much smaller than for comparable conventional hot-dip galvanized sheet

scalur®+Z for container construction
When it needs to be light: hot-dip galvanized flat steel scalur®+Z from thyssenkrupp.

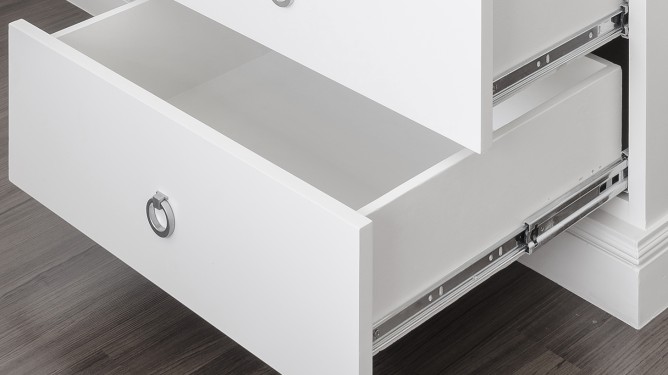

scalur®+Z is ideal for parts with strict tolerance requirements. These include stampings and profiles, such as construction profiles for external facades and telescopic runners for shelving and furniture manufacture. scalur®+Z also offers great weight reduction potential: In container construction the hot-dip galvanized flat product is used for example in base plates. scalur®+Z offers many opportunities for automotive weight reduction, for example in electric motor housings, side members and shock absorber mountings.

Steel grades scalur®+Z S390GD, scalur®+Z S420GD and scalur®+Z S450GD are approved according to 'Allgemeine bauaufsichtliche Zulassung' (national technichal approval) for applications in construction.

Thickness tolerances as a function of order thickness

Sheet thickness t [mm] Tolerance [mm]
1.50 ≤ t ≤ 2.00 ± 0.06
2.00 ≤ t ≤ 2.50 ± 0.07
2.50 ≤ t ≤ 4.00 ± 0.08

Available scalur®+Z grades

Steel family Steel grade name Standard name DIN EN 10346 THICKNESS1

from_to in mm
WIDTH1

from_to in mm
Mild steel for cold forming

scalur®+Z DX51D DX51D 1.5 – 4.0 900 – 1,550
scalur®+Z DX52D DX52D 1.5 – 4.0 900 - 1,550
Hot-dip coated structural steel scalur®+Z S220GD S220GD 1.5 – 4.0 900 – 1,550
scalur®+Z S250GD S250GD 1.5 – 4.0 900 – 1,550
scalur®+Z S280GD S280GD 1.5 – 4.0 900 – 1,550
scalur®+Z S320GD S320GD 1.5 – 4.0 900 – 1,550
scalur®+Z S350GD S350GD 1.5 – 4.0 900 – 1,550
scalur®+Z S390GD S390GD 1.5 – 4.0 900 – 1,550
scalur®+Z S420GD S4250GD
1.5 – 4.0 900 – 1,550
Microalloyed steel scalur®+Z HX260LAD HX260LAD 1.5 – 4.0 900 – 1,550
scalur®+Z HX300LAD HX300LAD 1.5 – 4.0 900 – 1,550
scalur®+Z HX340LAD HX340LAD 1.5 – 4.0 900 – 1,550
scalur®+Z HX380LAD HX380LAD 1.5 – 4.0 900 – 1,550
scalur®+Z HX420LAD HX420LAD 1.5 – 4.0 900 – 1,550
scalur®+Z HX460LAD HX460LAD 1.8 – 3.0 900 – 1,500
scalur®+Z HX500LAD HX500LAD 1.8 – 3.0 900 – 1,500
Complex-phase steel scalur®+Z HDT760C HDT760C 1.8 – 3.0 900 – 1,325
1. Not all thickness and width combinations possible.

scalur®+Z coating weight

Depending on grade, coating weights of 100, 140, 200 und 275 g/m² can be supplied. Further coating weights and different coating weights on each side can be supplied subject to agreement.
