smartform® – cost-optimized forming of high-strength steels without critical springback

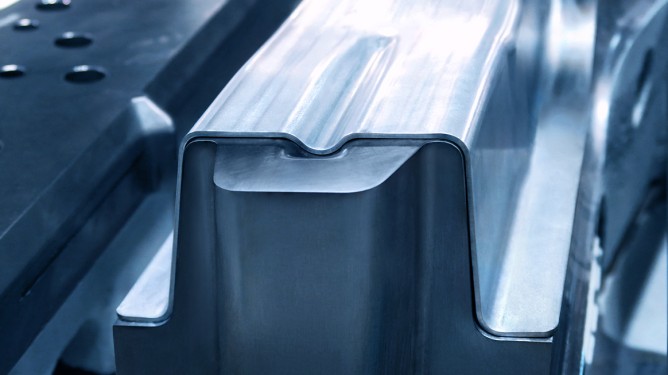

New potential for weight reduction with unparalleled dimensional accuracy with smartform®

Our new and innovative smartform® process allows the production of dimensionally accurate parts at lower cost by significantly reducing the amount of material used. At the same time it delivers greater degrees of freedom for complex geometric shapes.

smartform® is used in the press shop, i.e. at a central point in the production process where the geometry and structure of the vehicle are shaped. Here too the challenges are growing, because increasing material strengths lead to higher springback, reduced formability and a greater risk of variations between batches. With smartform® it is now possible to form high-strength steel grades reliably into highly accurate parts, opening up new weight-reduction potential.

smartform® advantages at a glance:

  • Financially attractive: On average 15% more efficient utilization of material by using optimally shaped blanks, optional sheet thickness optimization and use of AHSS
  • High dimensional accuracy: Consistent quality thanks to virtually springback-free forming of high-strength steels independent of batch and tooling
  • High process reliability: Reduced machine downtimes in the press shop through fewer coil changes and reduced maintenance requirements
  • Efficient product start-up: Frontloading in the process development phase significantly reduces tryout work

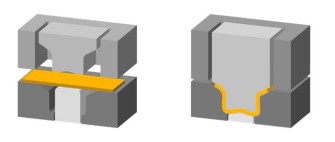

smartform® process - step 1

Pre-forming

  • Simple tooling design
  • No consideration of springback, but high cross-section repeatability
  • Robust and efficient forming process
  • Material allowance throughout cross section

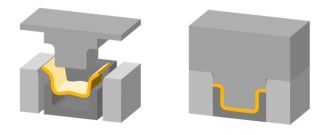

smartform® process - step 2

Sizing to final shape

  • Preform positioned in sizing die
  • Final sizing step triggers compressive stress superposition
  • Die corresponds to final part shape
  • Hardly any compensation measures required

thyssenkrupp Steel has news for cold forming.

„Our innovative, patented smartform® technology enables the process-reliable cold forming of ultrahigh-strength steels while the typical springback effect is eliminated to a large extent. The advantages are dimensionally stable components even at highest strengths, cost optimization and a new lightweight construction potential. You can say that smartform® is innovative cold forming 2.0.“

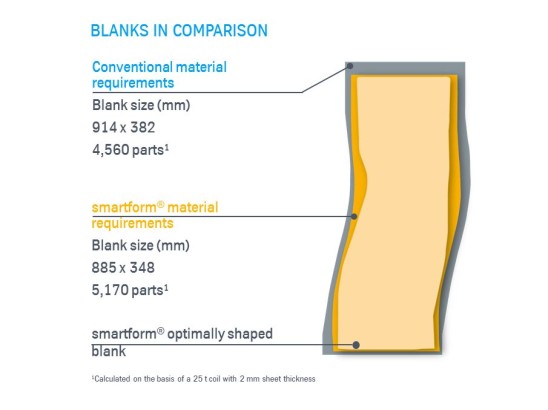

Greatly reduced material usage compared with conventional processes

Compared with a conventional process, forming a longitudinal member with the smartform® process allows a significant reduction in trimming requirements. smartform® is the first process capable of using optimally shaped blanks with no flange, thus minimizing scrap. The previous measures to compensate for springback based on higher material usage are no longer necessary. On average, the weight of material used can be reduced by 15%.

You might also be interested in

VW brings smartform in mass production

New process

VW brings smartform in mass production

Video cold forming process

Automotive cold formed components

Our animated infographic explains how the cold forming process works.
