Hot-rolled dual-phase steel for automotive construction

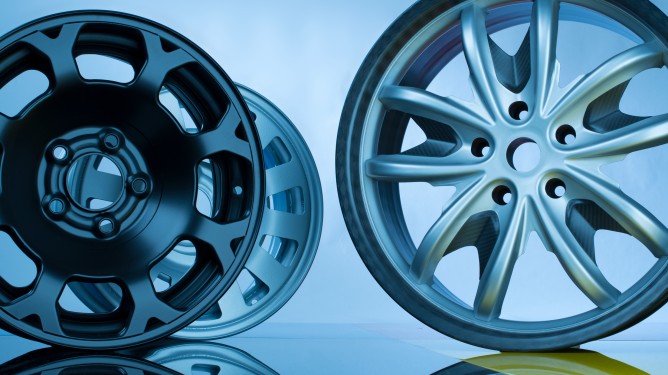

Applications of hot-rolled dual-phase steels in automobiles: profiles, body reinforcements, chassis parts, and wheels

The dual-phase steels DP-W® from thyssenkrupp Steel meet the requirements of modern automotive manufacturing in terms of weight optimization and safety.

The hot-rolled grades of DP-W® steels show their particular advantages in the thicker sheet segment when manufacturing components such as profiles, body reinforcements, chassis parts, and wheels.

thyssenkrupp Steel supplies the following steel grades as per the product information or the reference steel grades in accordance with the standards DIN EN 10346 and VDA 239-100.

Hot-rolled dual-phase steel

Steel grade Reference grade
DIN EN 10346 /
VDA 239-100 		Thickness1
from _ to in mm 		Width1
from _ to in mm
DP-W® 300Y530T – 2.50 – 5.50 70 – 1,630
DP-W® 300Y580T – 2.50 – 5.50 70 – 1,630
DP-W® 330Y580T HDT580X /­
HR330Y580T-DP 		3.00 – 5.50 70 – 1,630
1. Not all thickness and width combinations possible.

Downloads

  • Product information DP-W® 300Y530T

  • Product information DP-W® 330Y580T

  • Product information DP-W® 300Y580T

  • Advanced high-strength steels (Overview)
