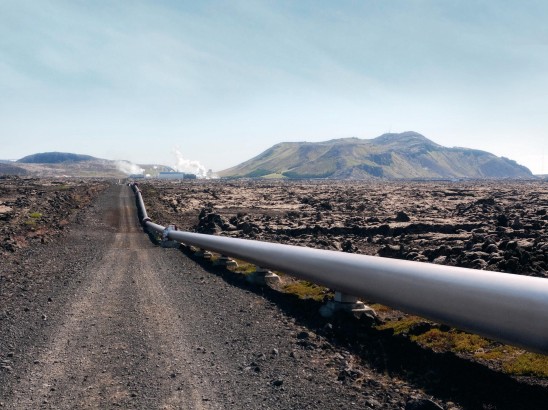

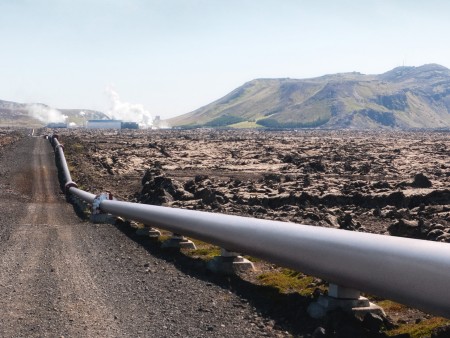

Tailored hot-rolled steels for durable and robust line pipes to carry water, oil, gas and hydrogen

Tailored hot-rolled steels for durable and robust line pipes for the conveyance of water, oil, gas and hydrogen.

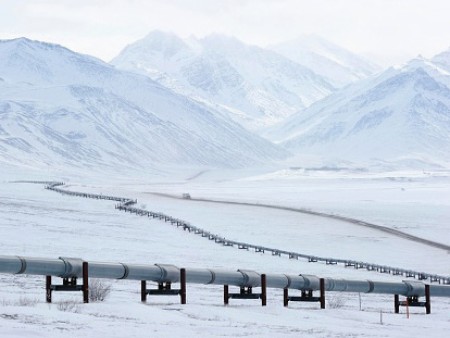

Steels for welded line pipes for the conveyance of water, oil and gas as well as for the distribution of hydrogen and carbon dioxide must meet special requirements depending on the medium to be transported.

Be it operating pressures of over 100 bar, abrasive wear, extreme temperatures or temperature variations, permanent mechanical stress – the primary requirement characteristics and the specific material properties required as a result in terms of strength, toughness and chemical composition are as varied as the possible applications of welded pipes.

thyssenkrupp Steel supplies special steels for all applications of line pipes:

  • Line pipes of product class PSL 2 according to API 5L/DIN EN ISO 3183 with or without optional Battelle drop weight tear test (DWT test)
  • Water tubes according to EN 10224 and API 5L PSL 1
  • Oil country tubular goods (OCTG) according to API 5CT
  • CO2 transportation pipelines according to ISO 27913
  • Sour service pipes according to API 5L, Annex H
  • Pipes for the transport of hydrogen according to EIGA Guideline
  • Structural pipes and hollow sections according to DIN EN 10219-1 and API 5L PSL 1

If you need information about any other steel grades, applications or dimensions, our experts will be happy to assist you.

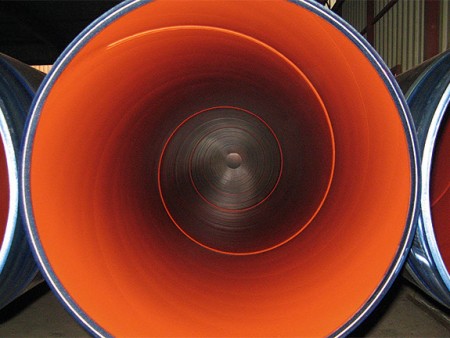

Spiral welded steel pipes for the conveyance of oil and gas.
Spiral welded steel pipes for the conveyance of oil and gas.

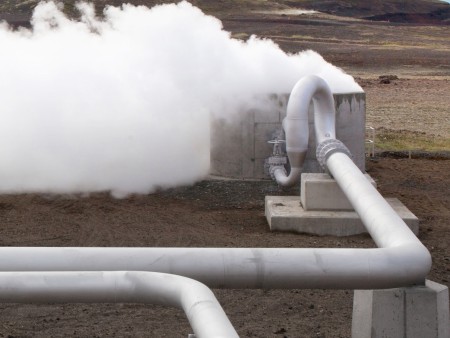

Line pipes for oil and other flammable liquids, natural gas and other gaseous media

The oil and gas industry uses pipelines as a safe means of transporting oil and gas over long distances. Steel is the ideal material for pipeline transportation systems in terms of safety, reliability, robustness and durability. Our pipe steel grades for line pipes used to convey liquid and gaseous media are available in normalized or thermomechanically rolled delivery conditions. Apart from a low carbon content and the resulting good weldability, thermomechanically rolled pipe steels feature excellent toughness properties - an important characteristic for pipes that have to withstand high operating pressures.

Aside from the standard grades for oil and gas pipes, our portfolio also includes special steels for media contaminated with hydrogen sulfide (H2S) in accordance with API 5L, Annex H, and DIN EN ISO 3183. In our in-house corrosion laboratory, which is accredited according to ISO 17025, DaKKS and ARAMCO, we carry out corresponding tests for sour gas resistance according to common NACE regulations.

Steels for line pipes for the conveyance of oil and other flammable liquids, natural gas and other gaseous media /
Steels for CO2 transportation pipelines
API 5L/DIN EN ISO 3183 PSL 2 + DWTT

API 5L/DIN EN ISO 3183 PSL 21
­
­
With Battelle drop weight
tear test (DWT test)3
Steel grade
­
­
THICKNESS2
from _ to in mm
WIDTH2
max. in mm
THICKNESS2
from _ to in mm
WIDTH2
max. in mm
L245/Grade B 3.00 – 25.40 2,000 on request on request
L290/X42 3.00 – 25.40 2,000 on request on request
L360/X52 3.00 – 25.40 2,000 on request on request
L415/X60 3.00 – 25.40 1,900 6.00 – 14.00 1,600
L450/X65 3.00 – 25.40 1,900 6.00 – 23.00 1,700
L485/X70 3.00 – 23.00 1,900 6.00 – 23.00 1,700
L555/X80 on request on request on request on request
1. As-delivered condition +N: Grade B, X42, X52, as-delivered condition +M: all grades | 2. Not all thickness and width combinations are possible. | 3. No requirements for this steel grade according to API/DIN EN ISO; Steel grades ≤ X52 on request.

API 5L Annex H PSL 2 + Sour Service

Steel grade
­
­
THICKNESS1
from _ to in mm
WIDTH1
max. in mm
L245/Grade B 3.00 – 25.40 2,000
L290/X42 3.00 – 25.40 2,000
L360/X52 3.00 – 25.40 2,000
L415/X60 3.00 – 16.00 1,600
L450/X65 3.00 – 16.00 1,600
L485/X70 on request on request
1. Not all thickness and width combinations are possible.
H2-optimized steels for safe and durable hydrogen pipelines
H2-optimized steels for safe and durable hydrogen pipelines.

For the hydrogen infrastructure of tomorrow: H2-optimized steels for safe and durable pipeline transportation systems

Apart from the low-alloy steel grades X42 and X52 which are suitable for the transport of gaseous hydrogen and hydrogen mixtures in accordance with EIGA Guideline IGC Doc 121/14, our range includes optimized material concepts for the strength range up to X70. These steels are optimized with regard to the expected standard requirements of longitudinal and spiral welded pipes for the transport of hydrogen, in particular with regard to restricted contents of carbon, phosphorus and sulfur.

Steels for the transport of hydrogen (H2)
EIGA Guideline IGC Doc 121/14 and H2 readiness based on API 5L

Steel grade
EIGA Guideline
­
THICKNESS1
from _ to in mm
WIDTH1
max. in mm
X42 3.00 – 25.40 2,000
X52 3.00 – 25.40 2,000
H2 readiness based on API 5L
X60 on request on request
X65 on request on request
X70 on request on request
1. Es sind nicht alle Dicken- und Breitenkombinationen möglich.
Steel for oil country tubular goods
Steel for oil country tubular goods.

Oil country tubular goods made of steel

Two types of OCTG pipe have proven their value for use as oil country tubular goods (OCTG) for the production of oil and gas: Tubings and casings. Our portfolio includes special steels for OCTG applications according to API 5CT.

Steel for oil country tubular goods (OCTG)

API 5CT

Steel grade
­
­
THICKNESS1
from _ to in mm
WIDTH1
max. in mm
H40 5.00 – 25.40 2,000
J55 5.00 – 25.40 2,000
K55 and higher2 5.00 – 25.40 2,000
1. Not all thickness and width combinations are possible. | 2. The hot-rolled strip is delivered "as rolled" (+AR). The chemical composition can be ordered according to API 5CT or to custom specification. The mechanical and technological properties of the pipes are obtained by specific heat treatment (Q+T) at the customer's site.
Steel pipes for the conveyance of industrial, drinking and wastewater
Steel pipes for the conveyance of industrial, drinking and wastewater.

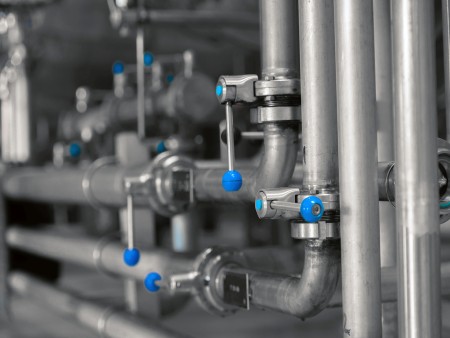

Bring on the water – Steel line pipes for water management

Be it for industrial or wastewater, cooling water, other aqueous liquids or even drinking water (cf. EN 10224) - supply by means of steel line pipes is the optimum solution in terms of cost-effectiveness and safety. Another field of application is district heating pipelines for high pressure loads in accordance with DIN EN 10217. Thanks to their high degree of purity in combination with a matching chemical composition, the steel grades are ideal for welding for the two applications.

Non-alloy steel for tubes for the conveyance of water
EN 10224, API 5L PSL 1

Steel grade
EN 10224
THICKNESS1
from _ toin mm
WIDTH1
max. in mm
L235 3.00 – 25.40 2,000
L275 3.00 – 25.40 2,000
L355 3.00 – 25.40 2,000
API 5L PSL 1
L245/Grade B 3.00 – 25.40 2,000
L290/X42 3.00 – 25.40 2,000
L360/X52 3.00 – 25.40 2,000
L415/X60 3.00 – 25.40 2,000
L450/X65 3.00 – 25.40 2,000
L485/X70 3.00 – 25.40 2,000
L555/X80 on request on request
1. Not all thickness and width combinations are possible.
Structural steel pipes for bridge construction
Structural steel pipes for bridge construction.

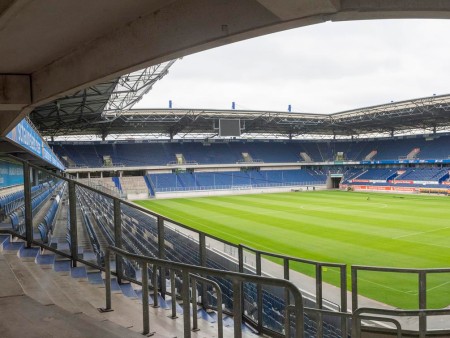

Cold-finished structural pipes for various applications in structural steelwork

Thanks to their high stability combined with low weight, welded steel pipes can be used for a wide variety of structural and mechanical applications:

  • Structural steelwork
  • Bridge construction
  • Mechanical and plant construction
  • Vehicle construction
  • Special vehicle and agricultural machinery construction

Be it supporting or frame structures for the construction of halls or scaffolding, for railings, posts, stairs and grandstands - we offer the entire range of non-alloy structural steels and fine-grained structural steels for the production of square, rectangular and round hollow sections.

Non-alloy structural steels and fine-grain structural steels for cold formed structural steel pipes
DIN EN 10219-1, API 5L PSL 1

Steel grade
DIN EN 10219-1
THICKNESS1
from _ to in mm
WIDTH1
max. in m
S275JRH, S275J0H, S75J2H 3.00 – 25.40 2,000
S355JRH, S355J0H, S355J2H 3.00 – 25.40 2,000
S420MH, S420MLH 3.00 – 20.00 1,800
API 5L PSL 1
L245/Grade B 3.00 – 25.40 2,000
L290/X42 3.00 – 25.40 2,000
L360/X52 3.00 – 25.40 2,000
L415/X60 3.00 – 25.40 2,000
L450/X65 3.00 – 25.40 2,000
L485/X70 3.00 – 25.40 2,000
L555/X80 on request on request
1. Not all thickness and width combinations are possible.
